Vertiv Products

Discover our comprehensive range of Vertiv products designed to enhance your experience.

Vertiv GXT5-10KIRT5UXLN

Brochure

Discuss with us

Vertiv GXT5-20KIRT9UXLN

Brochure

Discuss with us

VERTIV CLRA19KMM8A LCD Rack Console KVM

Brochure

Discuss with us

Vertiv 42U Rack Cabinett Model: SR-V061220SA - - 42Ux600Wx1200D

Brochure

Discuss with us

Vertiv 14240242 (CP8853) 32A, 230V, 7.3kW, IEC C19, 3m Power Cord Vertical Rack PDU (Black)

Brochure

Discuss with us

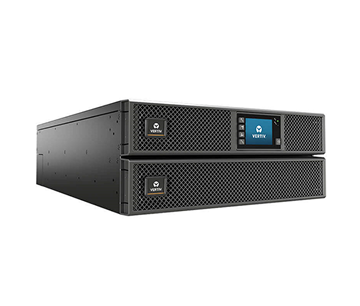

Vertiv GXT5-10KIRT5UXLN

Power Rating	10,000 VA / 10,000 W (Unity Power Factor)
Topology	Online Double Conversion Tech
Form Factor	5U Rack/Tower Convertible
Input Voltage Range	176–288 VAC (Full Load) \| 100–176 VAC (Derating)
Output Voltage	200/208/220/230/240 VAC (Configurable)
Efficiency	Up to 95% (Online Mode) \| Up to 98% (Active ECO Mode)
Battery Type	Valve-Regulated, Non-Spillable Lead Acid (VRLA)
External Battery Expansion	Supports External Battery Cabinets (EBC) for extended runtime
Network Management	Includes pre-installed RDU101 Network Card (Web, SNMP, Modbus)
Control Panel	Full-color graphic LCD display with gravity-sensing orientation

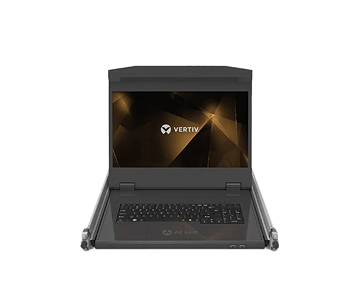

VERTIV CLRA19KMM8A KVM

Display Type	18.5-inch LED-backlit LCD Monitor
Aspect Ratio & Res	16:9 widescreen format, Full HD native support
KVM Integrated Switch	Integrated 8-port Local Rack Access KVM switch
Form Factor	1U slide-out drawer components for standard 19-inch racks
Keyboard/Mouse	Full 103-key keyboard with integrated numeric keypad and touchpad
Server Connections	Supports USB and PS/2 server interfaces via matching cables
Cascade Expansion	Can be cascaded to support access to multiple servers
OS Compatibility	Platform independent — Windows, Linux, Mac, and Sun Enterprise
Drawer Access Design	Tool-less installation design with robust stability rails

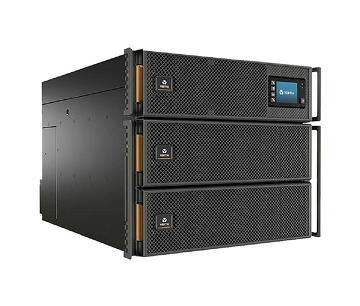

Vertiv GXT5-20KIRT9UXLN

Power Rating	20,000 VA / 20,000 W (Unity Power Factor)
Topology	Online Double Conversion Tech
Dimensions (W x D x H)	430 x 630 x 394 mm
Weight	135.2 kg
Input Voltage Range	Up to 288 VAC
Output Voltage	230 VAC (factory default), 50/60 Hz configurable
Overload (Utility Mode)	>150% for minimum 200 ms
Battery Type	Valve-Regulated, Non-Spillable Lead Acid (VRLA)
External Battery Expansion	Compatible with GXT5-EBC384VRT6U External Battery Cabinet
Network Management	Includes pre-installed RDU101 Network Card (Web, SNMP, Modbus)
Control Panel	Full-color graphic LCD display with gravity-sensing orientation

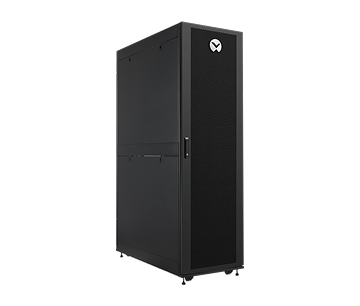

Vertiv 42U Rack Cabinet SR-V061220SA

Rack Height	42U
Dimensions (W x D x H)	600mm x 1200mm x 1992mm
Rack Type	Freestanding server/network rack (VE Rack series)
Frame Material	Nine-time folded solid steel frame
Finish	RAL 7021 Black
Approx. Weight	~138 kg (unit only)
Airflow	Up to 75% perforated front and rear doors
Mounting Rails	Adjustable 19-inch standard EIA rails
Mobility	Heavy-duty caster wheels with self-leveling feet
Security	Lockable split side panels
Compliance	RoHS Compliant

Vertiv 14240242 (CP8853) PDU

Model Number	CP8853 (Part #14240242)
Category	Monitored, Unit Level EC
Power Configuration	32A, 230V, 7.3 kW
Physical Configuration	1778mm x 51mm x 51mm, Vertical (0U)
Outlets	36x IEC C13, 6x IEC C19
Input Plug	IEC 60309 2P+E (IP44), Splash-proof
Power Cord Length	3 meters
Chassis Finish	Black Powder Coat
Monitoring	Real-time unit-level power/energy consumption monitoring, hot-swappable monitoring module
Typical Use Case	High-density rack power distribution for critical IT environments
